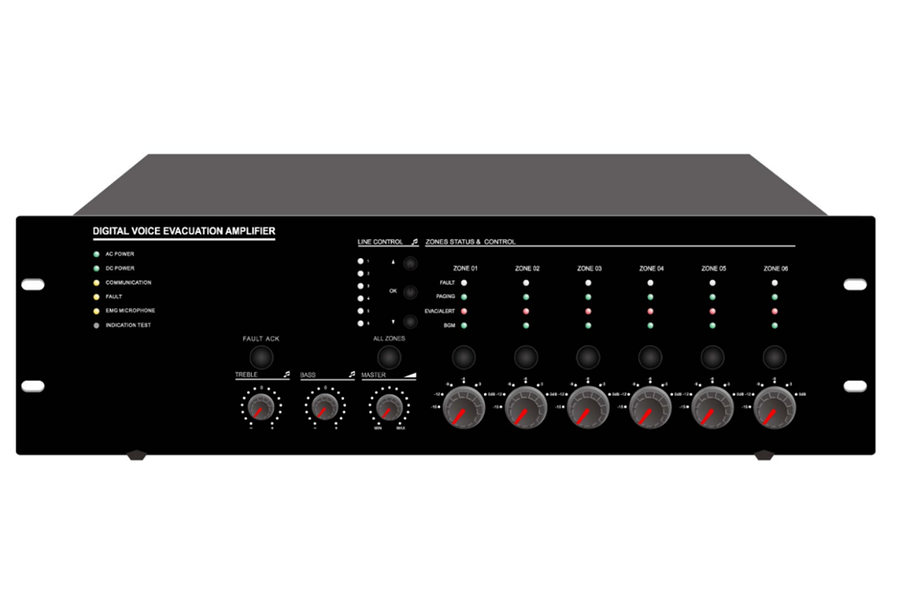

Description: The DP-EVAC1000RT voice evacuation router is one of the most important equipments of EN54-16 certified public address & voice evacuation system

The all in one voice alarm & evacuation router with same features of voice evacuation controller DP-EVAC1000 which includes zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface, while all main signals are feed from the master controller

The voice evacuation router is innovated with most advanced DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation

Each router built-in 6 zone speaker outputs, rated power output at 500W

The voice evacuation router shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router

The voice evacuation system is strictly follow the Construction products Regulation （ EU ） No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment

  Feature: ·         EN54-16 certification No

I/ISEETC

000620190305

·         Digital voice evacuation system all in one router

·         Integration of voice evacuation router, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface

·         Same features of master controller EVAC-500 while all main signals are feed from the master controller ·         Auto broadcasting EVAC and alert 256 voice messages to pre-set zones

·         AB speaker line surveillance to avoid any speaker line failure

·         Back-up power amplifier management

·         Up to 120 zones by cascaded with master controller DP-EVAC1000

·         Red
