Feature: Remote microphone or call station of voice evacuation system DP-EVAC-1000

EN54-16 Certified fireman’s microphone

Business & commercial zone live announcement use

Multiple zone, single zone & all zone paging

Each microphone of 12 zone capacity

Up to 120 zones by cascaded the zone keypad DP-EVAC12K

Support 32 remote microphones of loop redundancy connection

The remote microphone unit is fully real time monitored

Support PPT and lock type two modes

Shielded CAT‑6 cable up to 600 meters

Power supply from DP-EVAC-1000 controller

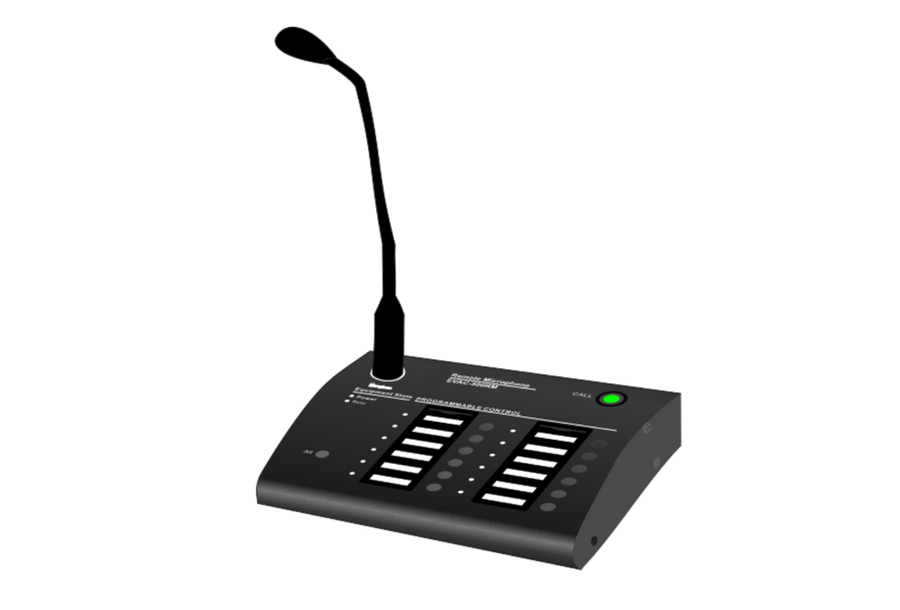

Description: The DP-EVAC1000RP remote microphone or call station is EN54-16 certified and designed exclusively for DP-EVAC-1000 public address & voice evacuation system

The remote microphone is used for business and commercial live announcement to selected zones or all zones

The remote microphone is designed of 12 zone buttons with busy & working indicators

One or multiple external 12 zone expansion keypad  DP-EVAC12K could be cascaded together for up to 120 zone operation

Up to 32 units of remote microphone could be connected to the voice evacuation system via standard, shielded CAT‑6 cable and RJ45 connectors in a redundancy loop up to 600 meters

The talk button maybe a PTT or lock type pre-set by the dipswitch on the rear of the microphone

Green LED indicates the microphone and zone active status

The remote microphone is 24VDC powered by the DP-EVAC-1000 controller

The voice evacuation system is strictly follow the Construction products Regulation （ EU ） No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment

Specification: Model DP-EVAC1000RP Description Remote Microphone Power Consumption 3W Zone Capacity 12 Zones System Capacity 32 Remote microphones Line Inputs 350mV, 10kΩ Mic Input 5mV, 600Ω Frequency Response 80Hz~16kHz THD ＜ 1% at RMS,1KHz S/N Ratio > 70dB Operating Temp -20℃ to +70℃ Power Supply DC24V, ±20% Humidity
