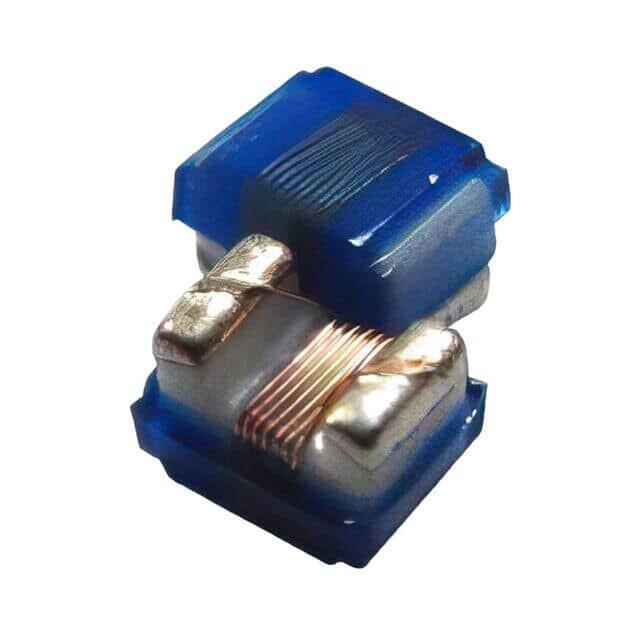

BWLS001611091R0J00 - PULSE ELECTRONICS - FIXED IND 1UH 600MA 810 MOHM SMD Packaging Cut Tape (CT) Tolerance ±5% Features - Package / Case 0603 (1608 Metric) Size / Dimension 0

063" L x 0

043" W (1

60mm x 1

10mm) Mounting Type Surface Mount Shielding Unshielded Type Drum Core, Wirewound Operating Temperature -25°C ~ 105°C DC Resistance (DCR) 810mOhm Max Q @ Freq 18 @ 7

9MHz Frequency - Self Resonant 310MHz Ratings - Current - Saturation (Isat) - Material - Core Ferrite Inductance Frequency - Test 7

9 MHz Supplier Device Package 0603 Height - Seated (Max) 0

043" (1

10mm) Inductance 1 µH Current Rating (Amps) 600 mA
